Digital Coolant Refractometer

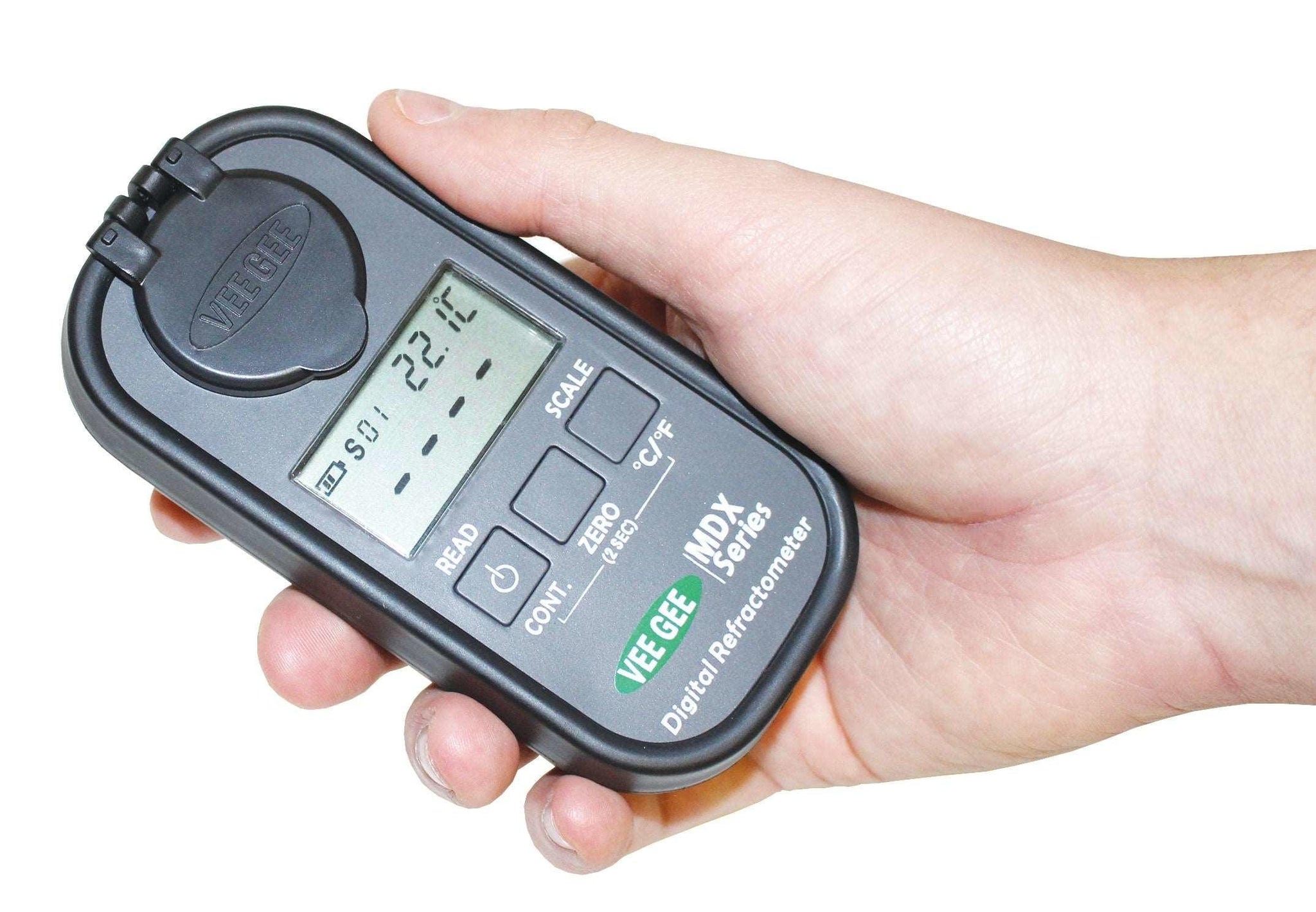

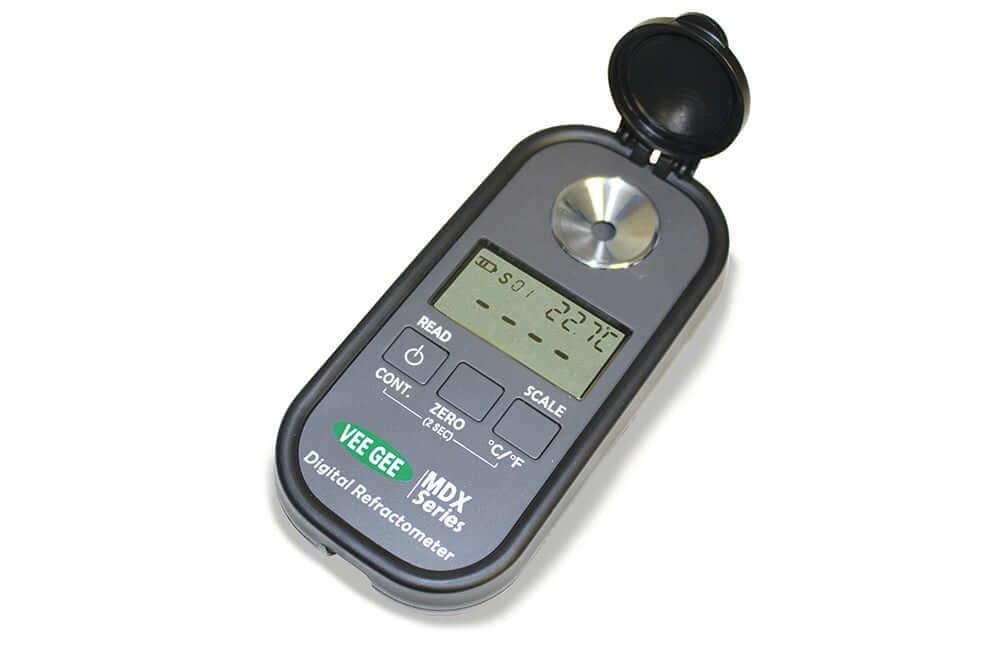

VEE GEE Scientific's MDX-603 Digital Coolant Refractometer measures the concentration and freezing point of the coolants ethylene glycol and propylene glycol.

Our coolant refractometer delivers quick, digital accuracy with high-end performance features like automatic temperature compensation (ATC) and continuous loop average readings. It also features IP65/67 ratings making it ideal for use in the field and in a multitude of environments.

This coolant refractometer has easy operation with a large digital LCD display that shows all of the needed data on screen. This digital refractometer also yields quick results, simply place 4-5 drops of your sample into the well, close the prism cover, and press the "READ" button... it's that simple!

The 4 scales included in this digital coolant refractometer (ethylene glycol, ethylene glycol freezing point, propylene glycol, and propylene glycol freezing point) can be used in a wide variety of applications including light industrial, chemical, and automotive.

                                                                                                                                    Key Features:

  • Compact & lightweight
  • Removable grip & prism cover for easy cleaning
  • Continuous loop read features (15 reads)
  • Automatic Temperature Control
  • Zero with distilled water
  • IP67 rating for detecting unit, IP65 for remainder
  • 589.3nm LED
  • Stainless steel prism well
  • °C/°F Switchable temperature display
  • 1-Year warranty

                                                                                                                            Package Includes:

  • Digital refractometer (Model MDX-603)
  • Rubber grip & prism cover

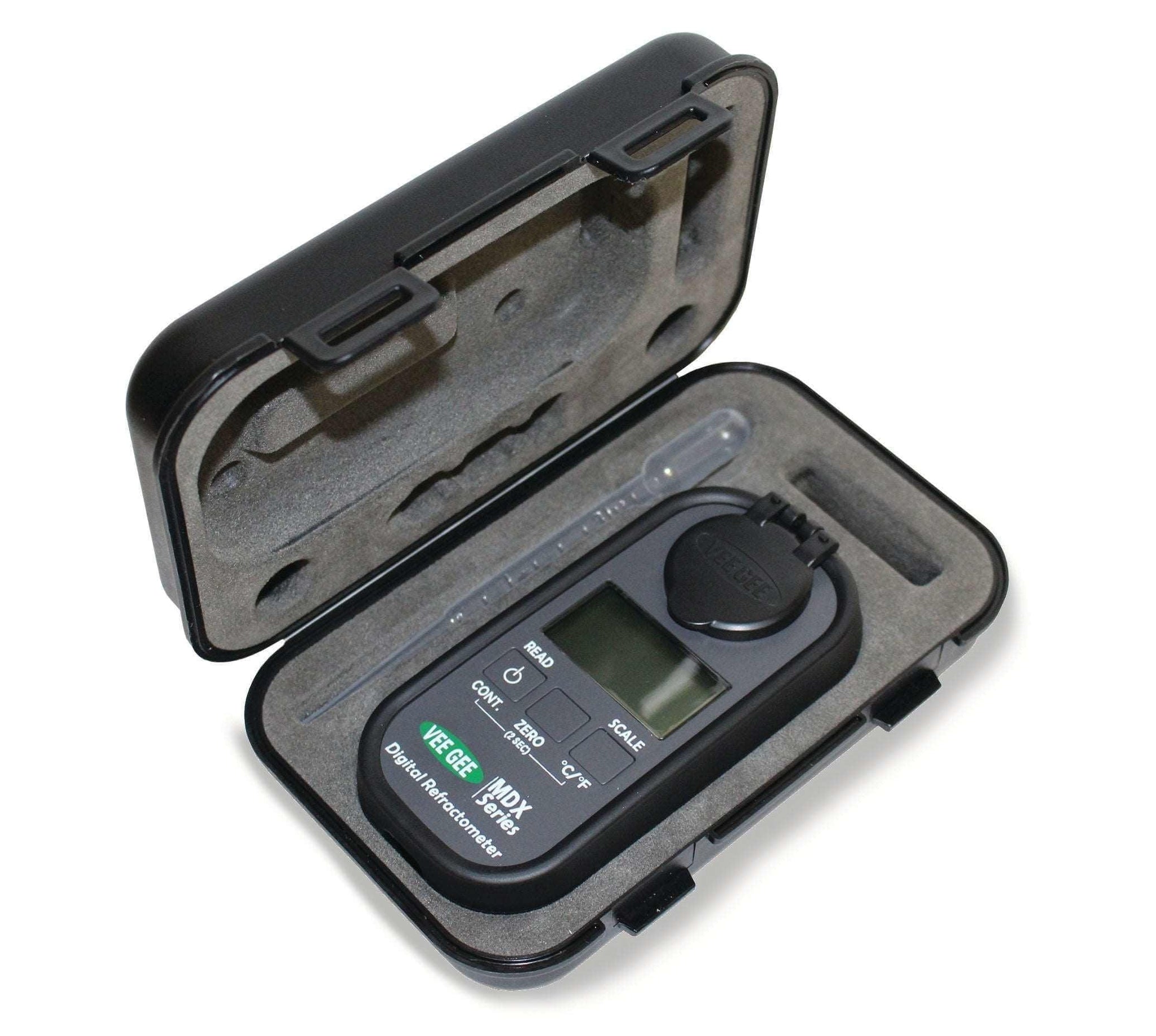

  • Hard shell case with protective lining
  • Disposable pipette
  • (1) AAA battery
  • User manual
Scale 1 Type Ethylene Glycol
Scale 1 Range 0 to 65%
Scale 1 Resolution 0.1%
Scale 1 Accuracy ±0.5%
Scale 2 Type Ethylene Glycol Freezing Point
Scale 2 Range -50 to 0°C (-80 to 32°F)
Scale 2 Resolution 0.1°C (0.1°F)
Scale 2 Accuracy ±0.5°C (±1.0°F)
Scale 3 Type Propylene Glycol
Scale 3 Range 0 to 73%
Scale 3 Resolution 0.1%
Scale 3 Accuracy ±0.5%
Scale 4 Type Propylene Glycol Freezing Point
Scale 4 Range -50 to 0°C (-100 to 32°F)
Scale 4 Resolution 0.1°C (0.1°F)
Scale 4 Accuracy ±0.5°C (±1.0°F)
